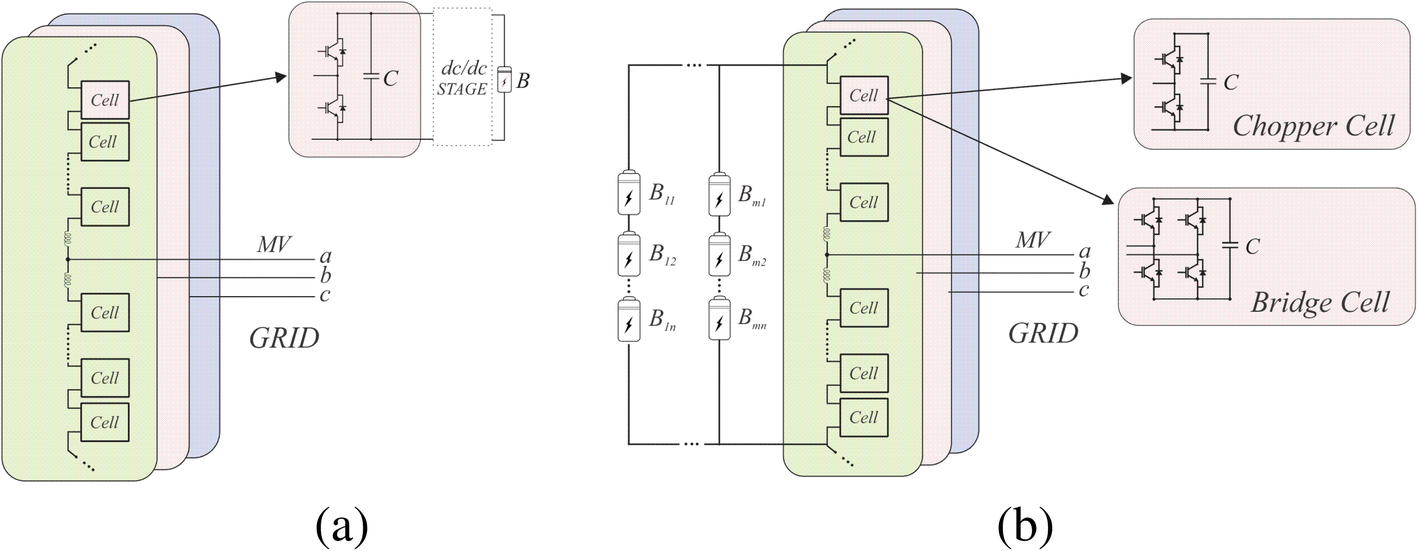

Fig. 7From: Power converters for battery energy storage systems connected to medium voltage systems: a comprehensive reviewMMC – disposition of batteries. a disposition of batteries in cells b disposition of batteries in dc-linkBack to article page
